1002292F0-AA10L0100

KYOCERA AVX

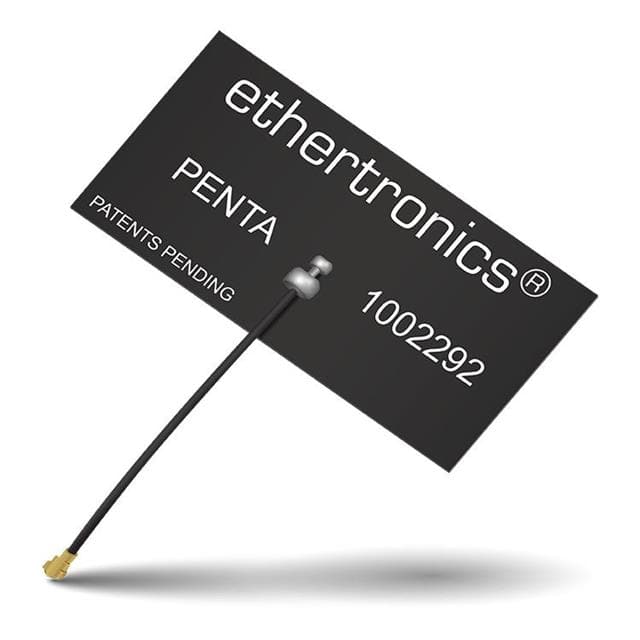

  • 1002292F0-AA10L0100 Image
    Image may be representation.See specifications for product details.

Product Overview

Part Number 1002292F0-AA10L0100
Manufacturer/Brand KYOCERA AVX
Product Description ANTENNA ASSY, PENTA 100
Datasheets 1002292F0-AA10L0100.pdf
RoHs Status
Stock Condition Out Stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS

In stock: 0 pcs

Reference Price(In US Dollars)
1
$4.05

Request Quote

Please complete all required fields with your contact information.
Click "SUBMIT REQUEST" we will contact you shortly by email.
Or Email us: mds@weikengsz.com

Please give us your target price if quantities greater than those displayed.

Inquiry Online

  • $ 0.0

Specifications

  • Part Number1002292F0-AA10L0100
  • ManufacturerKYOCERA AVX
  • DescriptionANTENNA ASSY, PENTA 100
  • Category181
  • Part Status0 pcs Stock
  • Height (Max)0.008" (0.20mm)
  • Frequency (Center/Band)796MHz, 2.2GHz
  • Frequency Range698MHz ~ 894MHz, 1.71GHz ~ 2.69GHz
  • Frequency GroupUHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)
  • Ingress Protection-
  • Gain1.2dBi, 5dBi
  • TerminationU.FL
  • Series-
  • categoriesRF and Wireless-->RF Antennas
  • FeaturesCable - 100mm
  • Number of Bands2
  • ApplicationsCellular, LTE-M, NB-IoT, loRa, SigFox
  • Mounting TypeAdhesive
  • Antenna TypePCB Trace
  • Return Loss-
  • PackageBox
  • Power - Max2 W
  • Product StatusActive
  • VSWR2.8, 3
  • RF Family/StandardCellular
