A11CSQ24VDC1.5

CIT Relay and Switch

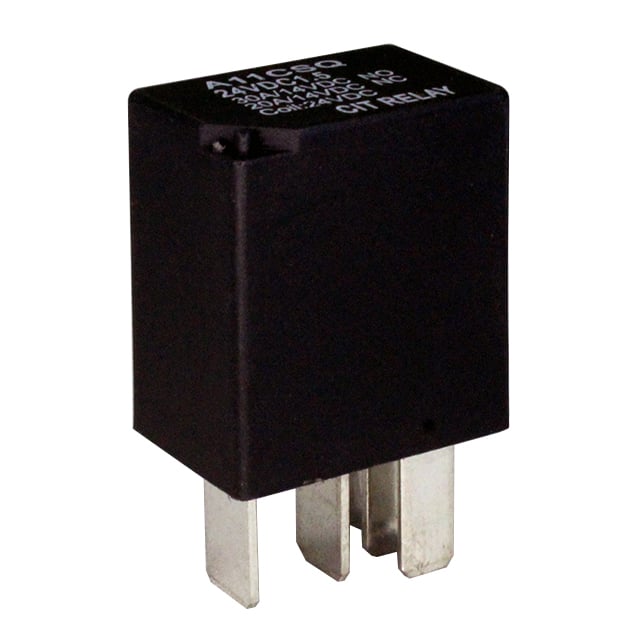

  • A11CSQ24VDC1.5 Image
    Image may be representation.See specifications for product details.

Product Overview

Part Number A11CSQ24VDC1.5
Manufacturer/Brand CIT Relay and Switch
Product Description RELAY AUTOMOTIVE SPDT 30A 24V
Datasheets 1.A11CSQ24VDC1.5.pdf 2.A11CSQ24VDC1.5.pdf 3.A11CSQ24VDC1.5.pdf 4.A11CSQ24VDC1.5.pdf 5.A11CSQ24VDC1.5.pdf 6.A11CSQ24VDC1.5.pdf
RoHs Status
Stock Condition In Stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS

In stock: 474 pcs

Reference Price(In US Dollars)
1
$1.46

Request Quote

Please complete all required fields with your contact information.
Click "SUBMIT REQUEST" we will contact you shortly by email.
Or Email us: mds@weikengsz.com

Please give us your target price if quantities greater than those displayed.

Inquiry Online

  • $ 0.0

Specifications

  • Part NumberA11CSQ24VDC1.5
  • ManufacturerCIT Relay and Switch
  • DescriptionRELAY AUTOMOTIVE SPDT 30A 24V
  • Category171
  • Part Status474 pcs Stock
  • Contact Rating (Current)30 A
  • Contact MaterialSilver Tin Oxide (AgSnO)
  • Contact FormSPDT (1 Form C)
  • Coil TypeNon Latching
  • Coil Resistance384 Ohms
  • Coil Current62.5 mA
  • Coil Voltage24VDC
  • Coil Power1.5W
  • SeriesA1
  • categoriesRelays-->Automotive Relays
  • Termination StylePlug In, Quick Connect - 0.187" (4.7mm)
  • FeaturesSealed - Fully
  • Operate Time10 ms
  • Must Release Voltage2.4 VDC
  • Must Operate Voltage18 VDC
  • Operating Temperature-40°C ~ 85°C
  • Mounting TypeSocketable
  • Base Product NumberA11CSQ
  • Release Time7 ms
  • PackageTube
  • Switching Voltage75VDC - Max
  • Product StatusActive
