A3F1ASQ12VDC2

CIT Relay and Switch

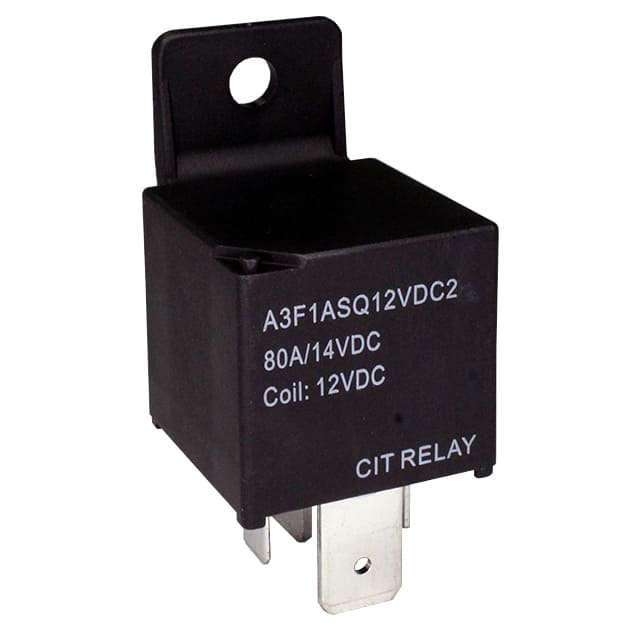

  • A3F1ASQ12VDC2 Image
    Image may be representation.See specifications for product details.

Product Overview

Part Number A3F1ASQ12VDC2
Manufacturer/Brand CIT Relay and Switch
Product Description RELAY AUTOMOTIVE SPST 80A 12V
Datasheets 1.A3F1ASQ12VDC2.pdf 2.A3F1ASQ12VDC2.pdf 3.A3F1ASQ12VDC2.pdf 4.A3F1ASQ12VDC2.pdf 5.A3F1ASQ12VDC2.pdf 6.A3F1ASQ12VDC2.pdf 7.A3F1ASQ12VDC2.pdf
RoHs Status
Stock Condition In Stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS

In stock: 78 pcs

Reference Price(In US Dollars)
1
$2.352

Request Quote

Please complete all required fields with your contact information.
Click "SUBMIT REQUEST" we will contact you shortly by email.
Or Email us: mds@weikengsz.com

Please give us your target price if quantities greater than those displayed.

Inquiry Online

  • $ 0.0

Specifications

  • Part NumberA3F1ASQ12VDC2
  • ManufacturerCIT Relay and Switch
  • DescriptionRELAY AUTOMOTIVE SPST 80A 12V
  • Category171
  • Part Status78 pcs Stock
  • Contact Rating (Current)80 A
  • Contact MaterialSilver Tin Oxide Indium Oxide (AgSnOInO)
  • Contact FormSPST-NO (1 Form A)
  • Coil TypeNon Latching
  • Coil Resistance80 Ohms
  • Coil Current150 mA
  • Coil Voltage12VDC
  • Coil Power1.8W
  • SeriesA3
  • categoriesRelays-->Automotive Relays
  • Termination StyleQuick Connect - Multiple Sizes
  • FeaturesSealed - Fully
  • Operate Time7 ms
  • Must Release Voltage1.2 VDC
  • Must Operate Voltage8.4 VDC
  • Operating Temperature-40°C ~ 125°C
  • Mounting TypeChassis Mount
  • Base Product NumberA3F1ASQ
  • Release Time5 ms
  • PackageTray
  • Switching Voltage75VDC - Max
  • Product StatusActive
