ANT-GNCP-C25L12100

Linx Technologies Inc.

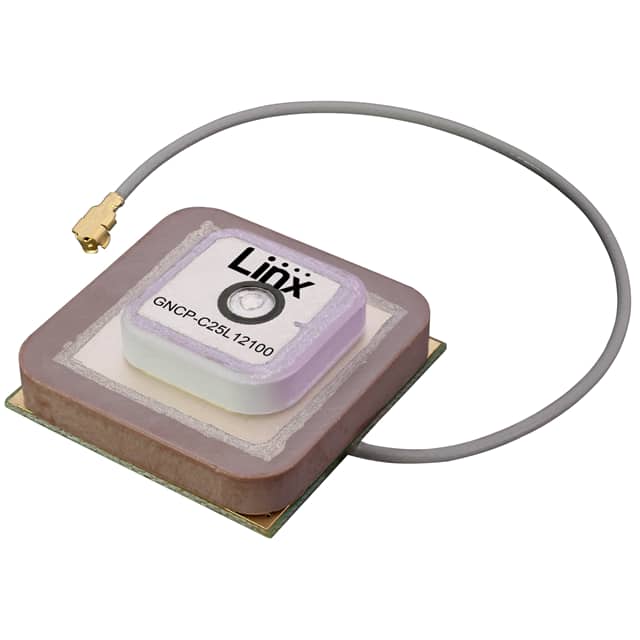

  • ANT-GNCP-C25L12100 Image
    Image may be representation.See specifications for product details.

Product Overview

Part Number ANT-GNCP-C25L12100
Manufacturer/Brand Linx Technologies
Product Description RF ANT GNSS GPS L1L2 25X25 LNA
Datasheets 1.ANT-GNCP-C25L12100.pdf 2.ANT-GNCP-C25L12100.pdf
RoHs Status
Stock Condition In Stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS

In stock: 172 pcs

Reference Price(In US Dollars)
1
$46.4

Request Quote

Please complete all required fields with your contact information.
Click "SUBMIT REQUEST" we will contact you shortly by email.
Or Email us: mds@weikengsz.com

Please give us your target price if quantities greater than those displayed.

Inquiry Online

  • $ 0.0

Specifications

  • Part NumberANT-GNCP-C25L12100
  • ManufacturerLinx Technologies
  • DescriptionRF ANT GNSS GPS L1L2 25X25 LNA
  • Category181
  • Part Status172 pcs Stock
  • Height (Max)0.472" (12.00mm)
  • Frequency (Center/Band)1.202GHz, 1.227GHz, 1.248GHz, 1.561GHz, 1.575GHz, 1.601GHz
  • Frequency Range1.197GHz ~ 1.25GHz, 1.559GHz ~ 1.606GHz
  • Frequency GroupUHF (1GHz ~ 2GHz)
  • Ingress Protection-
  • Gain27.9dBi, 28.1dBi, 15.9dBi, 25.9dBi, 27.6dBi, 23.8dBi
  • TerminationU.FL
  • SeriesGNCP
  • categoriesRF and Wireless-->RF Antennas
  • FeaturesCable - 100mm
  • Number of Bands6
  • ApplicationsBeidou, COMPASS, GALILEO, GLONASS, GPS, IRNSS, NavIC, Qzss
  • Mounting TypeSurface Mount
  • Antenna TypeCeramic Patch
  • Return Loss-8.4dB, -8dB, -15.1dB, -12.7dB, -12.7dB, -15.4
  • PackageBag
  • Product StatusActive
  • VSWR2.2, 2.3, 1.4, 1.6, 1.6, 1.4
  • RF Family/StandardNavigation
