AZ2800-2A-277AE

American Zettler

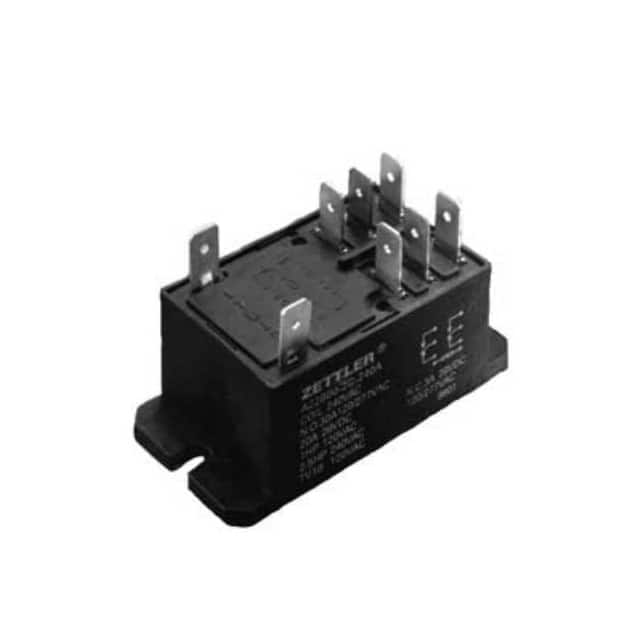

  • AZ2800-2A-277AE Image
    Image may be representation.See specifications for product details.

Product Overview

Part Number AZ2800-2A-277AE
Manufacturer/Brand American Zettler
Product Description RELAY EV CHG SOLAR DPST 40A 277V
Datasheets
RoHs Status
Stock Condition In Stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS

In stock: 97 pcs

Reference Price(In US Dollars)
1
$5.529

Request Quote

Please complete all required fields with your contact information.
Click "SUBMIT REQUEST" we will contact you shortly by email.
Or Email us: mds@weikengsz.com

Please give us your target price if quantities greater than those displayed.

Inquiry Online

  • $ 0.0

Specifications

  • Part NumberAZ2800-2A-277AE
  • ManufacturerAmerican Zettler
  • DescriptionRELAY EV CHG SOLAR DPST 40A 277V
  • Category167
  • Part Status97 pcs Stock
  • Contact Rating (Current)40 A
  • Contact MaterialSilver Cadmium Oxide (AgCdO)
  • Contact FormDPST-NO (2 Form A)
  • Relay TypeEV Charging, Solar
  • Coil InsulationClass F
  • Coil TypeNon Latching
  • Coil Resistance5.96 kOhms
  • Coil Current14.4 mA
  • Coil Voltage277VAC
  • Series-
  • categoriesRelays-->Power Relays, Over 2 Amps
  • Termination StyleQuick Connect - 0.187"/0.250"
  • Features-
  • Operate Time25 ms
  • Must Release Voltage55.4 VAC
  • Must Operate Voltage221.6 VAC
  • Operating Temperature-40°C ~ 65°C
  • Seal RatingSealed - Fully
  • Mounting TypeChassis Mount
  • Base Product NumberAZ2800
  • Release Time25 ms
  • PackageTray
  • Switching Voltage600VAC, 30VDC - Max
  • Product StatusActive
