AZDC105-1AH-12DT

American Zettler

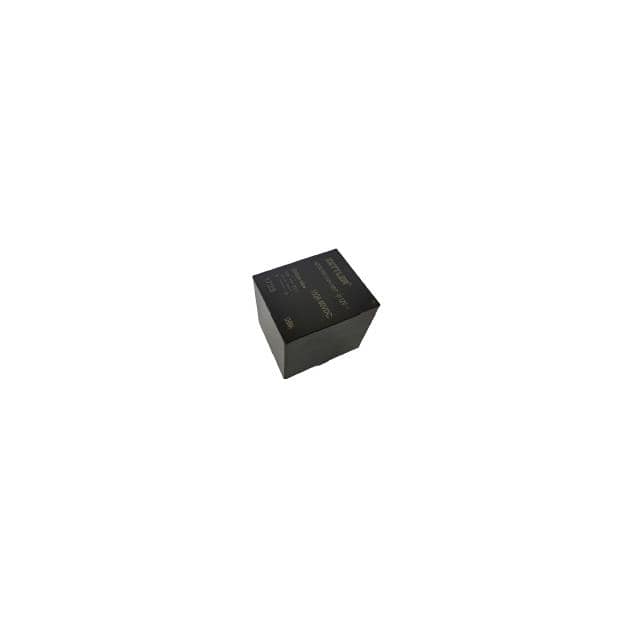

  • AZDC105-1AH-12DT Image
    Image may be representation.See specifications for product details.

Product Overview

Part Number AZDC105-1AH-12DT
Manufacturer/Brand American Zettler
Product Description RELAY GEN PURPOSE SPST 150A 12V
Datasheets AZDC105-1AH-12DT.pdf
RoHs Status
Stock Condition In Stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS

In stock: 60 pcs

Reference Price(In US Dollars)
1
$17.302

Request Quote

Please complete all required fields with your contact information.
Click "SUBMIT REQUEST" we will contact you shortly by email.
Or Email us: mds@weikengsz.com

Please give us your target price if quantities greater than those displayed.

Inquiry Online

  • $ 0.0

Specifications

  • Part NumberAZDC105-1AH-12DT
  • ManufacturerAmerican Zettler
  • DescriptionRELAY GEN PURPOSE SPST 150A 12V
  • Category167
  • Part Status60 pcs Stock
  • Contact Rating (Current)150 A
  • Contact MaterialSilver Tin Oxide (AgSnO)
  • Contact FormSPST-NO (1 Form A)
  • Relay TypeGeneral Purpose
  • Coil InsulationClass F
  • Coil TypeNon Latching
  • Coil Resistance45 Ohms
  • Coil Current266.7 mA
  • Coil Voltage12VDC
  • Series-
  • categoriesRelays-->Power Relays, Over 2 Amps
  • Termination StylePC Pin
  • Features-
  • Operate Time30 ms
  • Must Release Voltage0.6 VDC
  • Must Operate Voltage9 VDC
  • Operating Temperature-40°C ~ 65°C
  • Seal Rating-
  • Mounting TypeThrough Hole
  • Release Time10 ms
  • PackageTray
  • Switching Voltage60VDC - Max
  • Product StatusActive
