BRD1160C-TL

Power Integrations

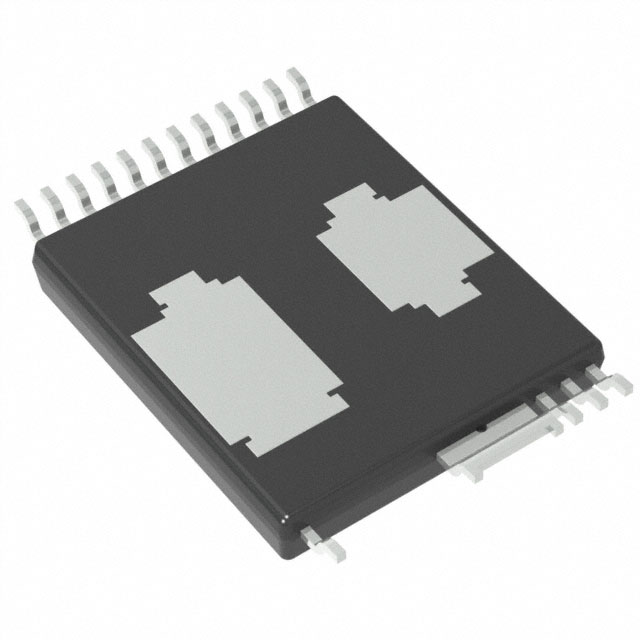

  • BRD1160C-TL Image
    Image may be representation.See specifications for product details.

Product Overview

Part Number BRD1160C-TL
Manufacturer/Brand Power Integrations
Product Description IC HALF BRIDGE DRVR 1A INSOP24C
Datasheets 1.BRD1160C-TL.pdf 2.BRD1160C-TL.pdf 3.BRD1160C-TL.pdf
RoHs Status
Stock Condition Out Stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS

In stock: 0 pcs

Reference Price(In US Dollars)
1
$0.806

Request Quote

Please complete all required fields with your contact information.
Click "SUBMIT REQUEST" we will contact you shortly by email.
Or Email us: mds@weikengsz.com

Please give us your target price if quantities greater than those displayed.

Inquiry Online

  • $ 0.0

Specifications

  • Part NumberBRD1160C-TL
  • ManufacturerPower Integrations
  • DescriptionIC HALF BRIDGE DRVR 1A INSOP24C
  • Category129
  • Part Status0 pcs Stock
  • Rds On (Typ)6.84Ohm LS, 6.84Ohm HS
  • Output ConfigurationHalf Bridge
  • Load TypeCapacitive and Resistive
  • SeriesBridgeSwitch
  • categoriesIntegrated Circuits (ICs)-->Power Management (PMIC)-->Full Half-Bridge Drivers
  • Current - Output / Channel1A
  • Current - Peak Output-
  • Voltage - Load600V
  • Voltage - Supply-
  • FeaturesBootstrap Circuit
  • Fault ProtectionCurrent Limiting, Over Temperature, Over Voltage
  • InterfaceAnalog, Logic, PWM
  • TechnologyPower MOSFET
  • ApplicationsDC Motors, General Purpose
  • Operating Temperature-40°C ~ 150°C (TJ)
  • Package / Case24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads
  • Mounting TypeSurface Mount
  • Base Product NumberBRD1160
  • PackageTape & Reel (TR)
  • Supplier Device PackageInSOP-24C
  • Product StatusActive
