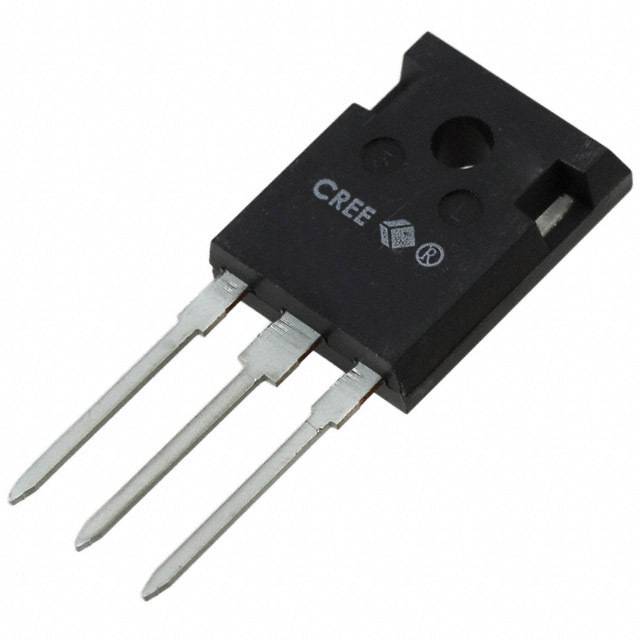

  • CMF10120D Image
    Image may be representation.See specifications for product details.

Product Overview

Part Number CMF10120D
Manufacturer/Brand Cree Wolfspeed
Product Description MOSFET N-CH 1200V 24A TO247
Datasheets CMF10120D.pdf
RoHs Status
Stock Condition Out Stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS

In stock: 0 pcs

Reference Price(In US Dollars)

Request Quote

Please complete all required fields with your contact information.
Click "SUBMIT REQUEST" we will contact you shortly by email.
Or Email us: mds@weikengsz.com

Please give us your target price if quantities greater than those displayed.

Inquiry Online

  • $ 0.0

Specifications

  • Part NumberCMF10120D
  • ManufacturerCree Wolfspeed
  • DescriptionMOSFET N-CH 1200V 24A TO247
  • Category46
  • Part Status0 pcs Stock
  • Drive Voltage (Max Rds On, Min Rds On)20V
  • Part StatusObsolete
  • Input Capacitance (Ciss) (Max) @ Vds928pF @ 800V
  • Detailed DescriptionN-Channel 1200V 24A (Tc) 134W (Tc) Through Hole TO-247
  • SeriesZ-FET™
  • Current - Continuous Drain (Id) @ 25°C24A (Tc)
  • ManufacturerCree/Wolfspeed
  • Drain to Source Voltage (Vdss)1200V
  • Moisture Sensitivity Level (MSL)1 (Unlimited)
  • Standard Package600
  • Gate Charge (Qg) (Max) @ Vgs47.1nC @ 20V
  • Lead Free Status / RoHS StatusLead free / RoHS Compliant
  • TechnologySiCFET (Silicon Carbide)
  • Operating Temperature-55°C ~ 135°C (TJ)
  • Package / CaseTO-247-3
  • PackagingTube
  • Mounting TypeThrough Hole
  • Power Dissipation (Max)134W (Tc)
  • Supplier Device PackageTO-247
  • Vgs (Max)+25V, -5V
  • Vgs(th) (Max) @ Id4V @ 500µA
  • Rds On (Max) @ Id, Vgs220 mOhm @ 10A, 20V
  • FET Feature-
  • FET TypeN-Channel
