CSD18534KCS

Texas Instruments

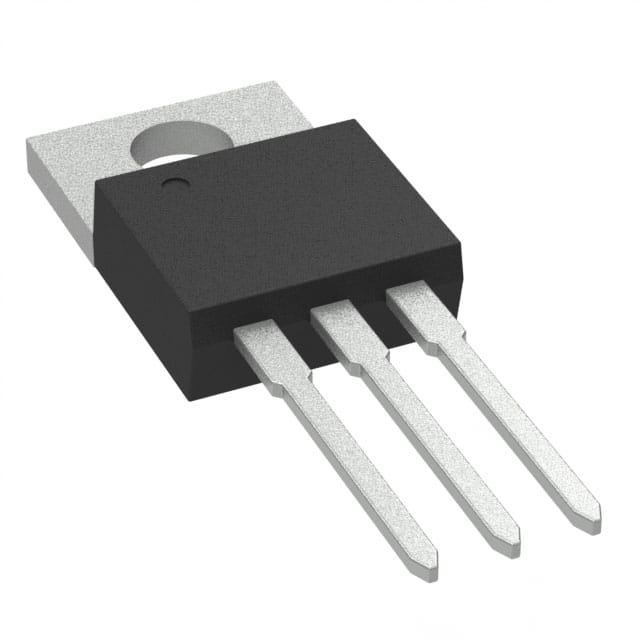

  • CSD18534KCS Image
    Image may be representation.See specifications for product details.

Product Overview

Part Number CSD18534KCS
Manufacturer/Brand Luminary Micro/Texas Instruments
Product Description MOSFET N-CH 60V 45A/100A TO220-3
Datasheets CSD18534KCS.pdf
RoHs Status
Stock Condition In Stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS

In stock: 2241 pcs

Reference Price(In US Dollars)
1
$0.593

Request Quote

Please complete all required fields with your contact information.
Click "SUBMIT REQUEST" we will contact you shortly by email.
Or Email us: mds@weikengsz.com

Please give us your target price if quantities greater than those displayed.

Inquiry Online

  • $ 0.0

Specifications

  • Part NumberCSD18534KCS
  • ManufacturerLuminary Micro/Texas Instruments
  • DescriptionMOSFET N-CH 60V 45A/100A TO220-3
  • Category46
  • Part Status2241 pcs Stock
  • Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
  • Input Capacitance (Ciss) (Max) @ Vds1880 pF @ 30 V
  • SeriesNexFET™
  • categoriesDiscrete Semiconductor Products-->Transistors-->FETs, MOSFETs-->Single FETs, MOSFETs
  • Current - Continuous Drain (Id) @ 25°C45A (Ta), 100A (Tc)
  • Drain to Source Voltage (Vdss)60 V
  • Gate Charge (Qg) (Max) @ Vgs24 nC @ 10 V
  • TechnologyMOSFET (Metal Oxide)
  • Operating Temperature-55°C ~ 175°C (TJ)
  • Package / CaseTO-220-3
  • Mounting TypeThrough Hole
  • Base Product NumberCSD18534
  • PackageTube
  • Power Dissipation (Max)107W (Tc)
  • Supplier Device PackageTO-220-3
  • Product StatusActive
  • Vgs (Max)±20V
  • Vgs(th) (Max) @ Id2.3V @ 250µA
  • Rds On (Max) @ Id, Vgs9.5mOhm @ 40A, 10V
  • FET Feature-
  • FET TypeN-Channel
