DB2L32400L1

Panasonic Electronic Components

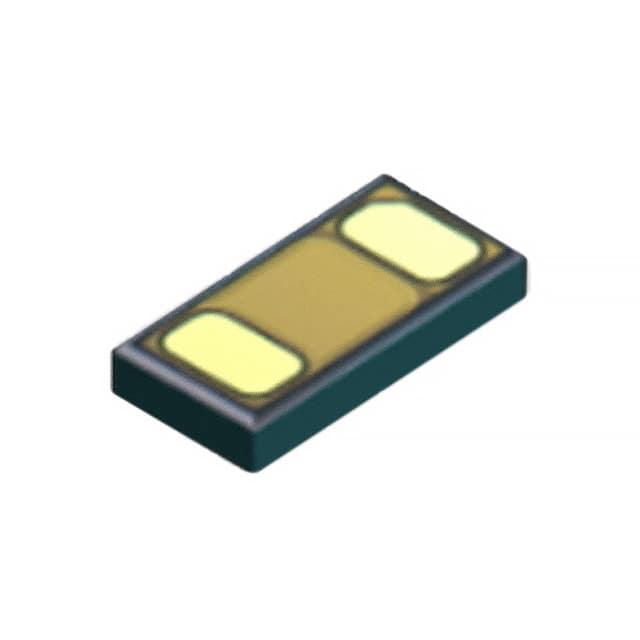

  • DB2L32400L1 Image
    Image may be representation.See specifications for product details.

Product Overview

Part Number DB2L32400L1
Manufacturer/Brand Panasonic
Product Description DIODE SCHOTTKY 30V 500MA 0201
Datasheets 1.DB2L32400L1.pdf 2.DB2L32400L1.pdf 3.DB2L32400L1.pdf
RoHs Status
Stock Condition Out Stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS

In stock: 0 pcs

Reference Price(In US Dollars)

Request Quote

Please complete all required fields with your contact information.
Click "SUBMIT REQUEST" we will contact you shortly by email.
Or Email us: mds@weikengsz.com

Please give us your target price if quantities greater than those displayed.

Inquiry Online

  • $ 0.0

Specifications

  • Part NumberDB2L32400L1
  • ManufacturerPanasonic
  • DescriptionDIODE SCHOTTKY 30V 500MA 0201
  • Category29
  • Part Status0 pcs Stock
  • SpeedFast Recovery =< 500ns, > 200mA (Io)
  • Series-
  • categoriesDiscrete Semiconductor Products-->Diodes-->Rectifiers-->Single Diodes
  • Current - Average Rectified (Io)500mA
  • Current - Reverse Leakage @ Vr225 µA @ 30 V
  • Capacitance @ Vr, F10pF @ 10V, 1MHz
  • Voltage - DC Reverse (Vr) (Max)30 V
  • Voltage - Forward (Vf) (Max) @ If490 mV @ 500 mA
  • TechnologySchottky
  • Operating Temperature - Junction150°C (Max)
  • Package / Case0201 (0603 Metric)
  • Mounting TypeSurface Mount
  • Base Product NumberDB2L324
  • Reverse Recovery Time (trr)3.2 ns
  • PackageTape & Reel (TR)
  • Supplier Device Package0201 (0603 Metric)
  • Product StatusDiscontinued at Digi-Key
