HE1AN-AC120V

Panasonic Electric Works

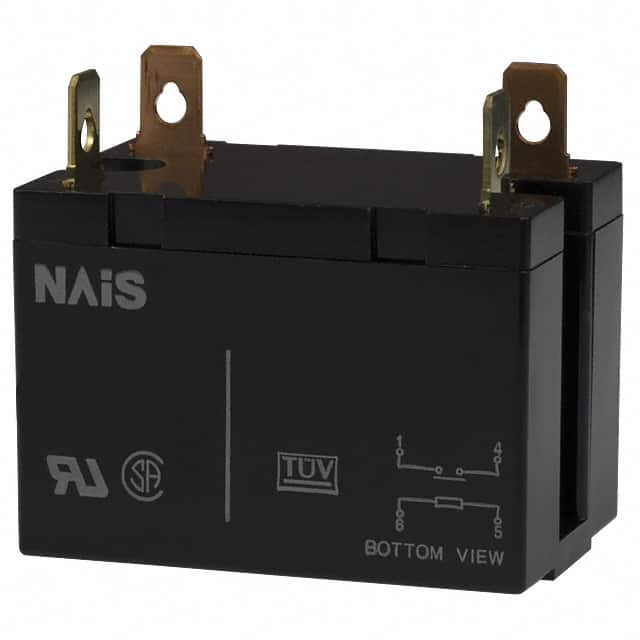

  • HE1AN-AC120V Image
    Image may be representation.See specifications for product details.

Product Overview

Part Number HE1AN-AC120V
Manufacturer/Brand Panasonic
Product Description RELAY GEN PURPOSE SPST 30A 120V
Datasheets 1.HE1AN-AC120V.pdf 2.HE1AN-AC120V.pdf 3.HE1AN-AC120V.pdf 4.HE1AN-AC120V.pdf
RoHs Status
Stock Condition In Stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS

In stock: 1049 pcs

Reference Price(In US Dollars)
1
$13.111

Request Quote

Please complete all required fields with your contact information.
Click "SUBMIT REQUEST" we will contact you shortly by email.
Or Email us: mds@weikengsz.com

Please give us your target price if quantities greater than those displayed.

Inquiry Online

  • $ 0.0

Specifications

  • Part NumberHE1AN-AC120V
  • ManufacturerPanasonic
  • DescriptionRELAY GEN PURPOSE SPST 30A 120V
  • Category167
  • Part Status1049 pcs Stock
  • Contact Rating (Current)30 A
  • Contact MaterialSilver Tin Oxide (AgSnO)
  • Contact FormSPST-NO (1 Form A)
  • Relay TypeGeneral Purpose
  • Coil Insulation-
  • Coil TypeNon Latching
  • Coil Current21 mA
  • Coil Voltage120VAC
  • SeriesHE
  • categoriesRelays-->Power Relays, Over 2 Amps
  • Termination StylePlug In, Quick Connect - 0.250' (6.3mm)
  • Features-
  • Operate Time30 ms
  • Must Release Voltage18 VAC
  • Must Operate Voltage84 VAC
  • Operating Temperature-50°C ~ 55°C
  • Seal Rating-
  • Mounting TypeChassis Mount
  • Base Product NumberHE1AN
  • Release Time30 ms
  • PackageBulk
  • Switching Voltage277VAC, 30VDC - Max
  • Product StatusActive
