HE2AN-Q-AC24V

Panasonic Electric Works

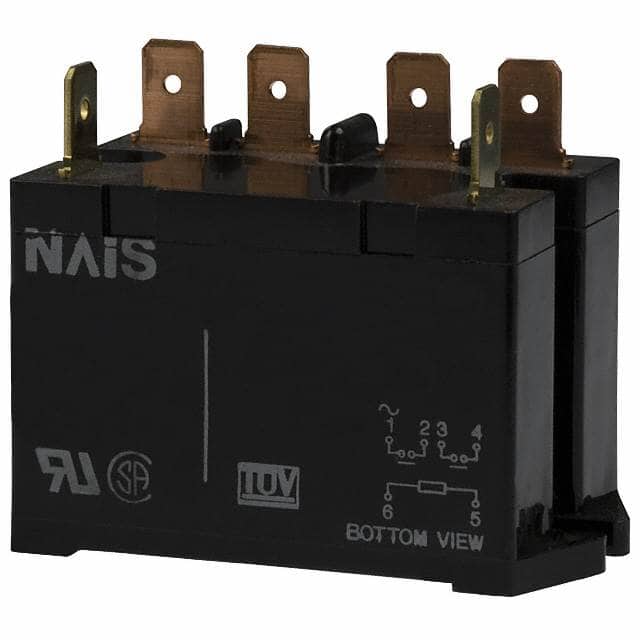

  • HE2AN-Q-AC24V Image
    Image may be representation.See specifications for product details.

Product Overview

Part Number HE2AN-Q-AC24V
Manufacturer/Brand Panasonic Electric Works
Product Description RELAY GEN PURPOSE DPST 25A 24V
Datasheets 1.HE2AN-Q-AC24V.pdf 2.HE2AN-Q-AC24V.pdf 3.HE2AN-Q-AC24V.pdf 4.HE2AN-Q-AC24V.pdf
RoHs Status
Stock Condition In Stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS

In stock: 678 pcs

Reference Price(In US Dollars)
1
$13.94

Request Quote

Please complete all required fields with your contact information.
Click "SUBMIT REQUEST" we will contact you shortly by email.
Or Email us: mds@weikengsz.com

Please give us your target price if quantities greater than those displayed.

Inquiry Online

  • $ 0.0

Specifications

  • Part NumberHE2AN-Q-AC24V
  • ManufacturerPanasonic Electric Works
  • DescriptionRELAY GEN PURPOSE DPST 25A 24V
  • Category167
  • Part Status678 pcs Stock
  • Contact Rating (Current)25 A
  • Contact MaterialSilver Tin Oxide (AgSnO)
  • Contact FormDPST-NO (2 Form A)
  • Relay TypeGeneral Purpose
  • Coil Insulation-
  • Coil TypeNon Latching
  • Coil Current74 mA
  • Coil Voltage24VAC
  • SeriesHE
  • categoriesRelays-->Power Relays, Over 2 Amps
  • Termination StyleQuick Connect - 0.250' (6.3mm)
  • Features-
  • Operate Time30 ms
  • Must Release Voltage3.6 VAC
  • Must Operate Voltage16.8 VAC
  • Operating Temperature-50°C ~ 55°C
  • Seal Rating-
  • Mounting TypeChassis Mount
  • Base Product NumberHE2AN
  • Release Time30 ms
  • PackageTube
  • Switching Voltage277VAC, 30VDC - Max
  • Product StatusActive
