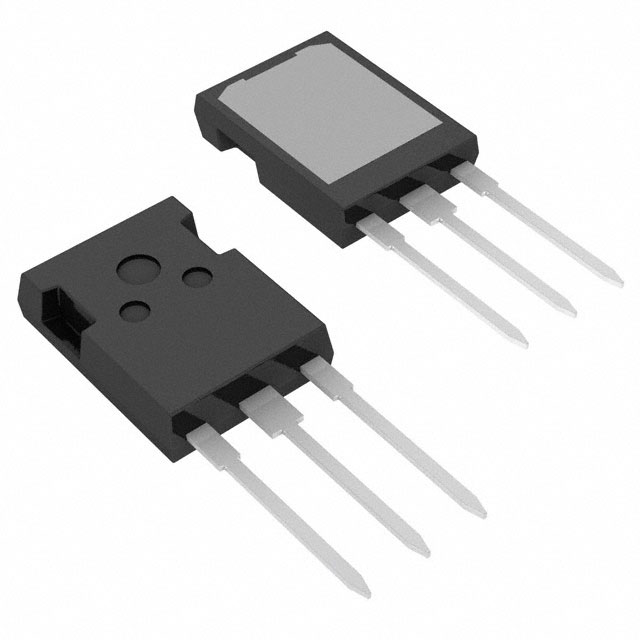

  • IXFX21N100F Image
    Image may be representation.See specifications for product details.

Product Overview

Part Number IXFX21N100F
Manufacturer/Brand IXYS RF
Product Description MOSFET N-CH 1000V 21A PLUS247-3
Datasheets IXFX21N100F.pdf
RoHs Status
Stock Condition In Stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS

In stock: 76 pcs

Reference Price(In US Dollars)
1
$18.77

Request Quote

Please complete all required fields with your contact information.
Click "SUBMIT REQUEST" we will contact you shortly by email.
Or Email us: mds@weikengsz.com

Please give us your target price if quantities greater than those displayed.

Inquiry Online

  • $ 0.0

Specifications

  • Part NumberIXFX21N100F
  • ManufacturerIXYS RF
  • DescriptionMOSFET N-CH 1000V 21A PLUS247-3
  • Category46
  • Part Status76 pcs Stock
  • Drive Voltage (Max Rds On, Min Rds On)10V
  • Part StatusActive
  • Input Capacitance (Ciss) (Max) @ Vds5500pF @ 25V
  • Detailed DescriptionN-Channel 1000V 21A (Tc) 500W (Tc) Through Hole PLUS247™-3
  • SeriesHiPerRF™
  • Current - Continuous Drain (Id) @ 25°C21A (Tc)
  • ManufacturerIXYS-RF
  • Drain to Source Voltage (Vdss)1000V
  • Moisture Sensitivity Level (MSL)1 (Unlimited)
  • Standard Package30
  • Gate Charge (Qg) (Max) @ Vgs160nC @ 10V
  • Lead Free Status / RoHS StatusLead free / RoHS Compliant
  • TechnologyMOSFET (Metal Oxide)
  • Operating Temperature-55°C ~ 150°C (TJ)
  • Package / CaseTO-247-3
  • PackagingTube
  • Mounting TypeThrough Hole
  • Power Dissipation (Max)500W (Tc)
  • Manufacturer Standard Lead Time14 Weeks
  • Supplier Device PackagePLUS247™-3
  • Vgs (Max)±20V
  • Vgs(th) (Max) @ Id5.5V @ 4mA
  • Rds On (Max) @ Id, Vgs500 mOhm @ 10.5A, 10V
  • FET Feature-
  • FET TypeN-Channel
