RZF1-1A4-L006

TE Connectivity Potter & Brumfield Relays

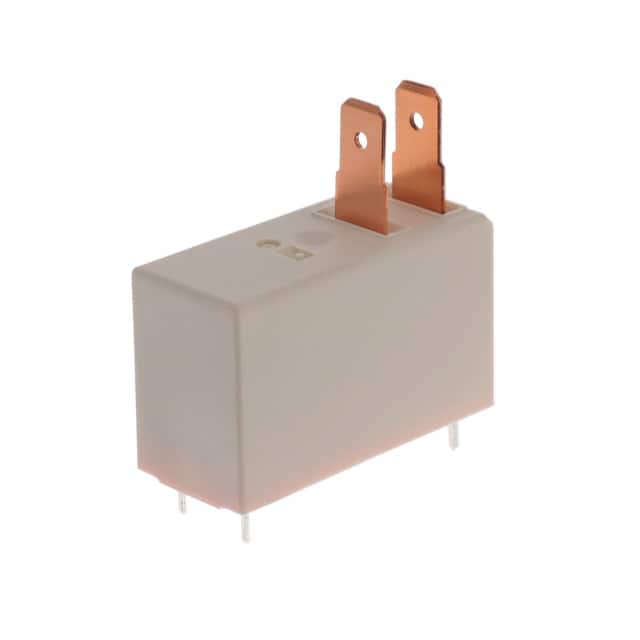

  • RZF1-1A4-L006 Image
    Image may be representation.See specifications for product details.

Product Overview

Part Number RZF1-1A4-L006
Manufacturer/Brand Potter & Brumfield Relays / TE Connectivity
Product Description RELAY GEN PURPOSE SPST 16A 6V
Datasheets 1.RZF1-1A4-L006.pdf 2.RZF1-1A4-L006.pdf 3.RZF1-1A4-L006.pdf
RoHs Status
Stock Condition In Stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS

In stock: 385 pcs

Reference Price(In US Dollars)
1
$1.546

Request Quote

Please complete all required fields with your contact information.
Click "SUBMIT REQUEST" we will contact you shortly by email.
Or Email us: mds@weikengsz.com

Please give us your target price if quantities greater than those displayed.

Inquiry Online

  • $ 0.0

Specifications

  • Part NumberRZF1-1A4-L006
  • ManufacturerPotter & Brumfield Relays / TE Connectivity
  • DescriptionRELAY GEN PURPOSE SPST 16A 6V
  • Category167
  • Part Status385 pcs Stock
  • Contact Rating (Current)16 A
  • Contact MaterialSilver Nickel (AgNi)
  • Contact FormSPST-NO (1 Form A)
  • Relay TypeGeneral Purpose
  • Coil InsulationClass F
  • Coil TypeNon Latching
  • Coil Resistance66.6 Ohms
  • Coil Current90.1 mA
  • Coil Voltage6VDC
  • SeriesRZF, SCHRACK
  • categoriesRelays-->Power Relays, Over 2 Amps
  • Termination StylePC Pin, Quick Connect - 0.187" (4.7mm)
  • Features-
  • Operate Time8 ms
  • Must Release Voltage0.6 VDC
  • Must Operate Voltage4.2 VDC
  • Operating Temperature-40°C ~ 85°C
  • Seal RatingSealed - Flux Protection
  • Mounting TypeThrough Hole
  • Base Product NumberRZF1
  • Release Time6 ms
  • PackageTube
  • Switching Voltage400VAC - Max
  • Product StatusActive
