S90R5ABD1-120

TE Connectivity Potter & Brumfield Relays

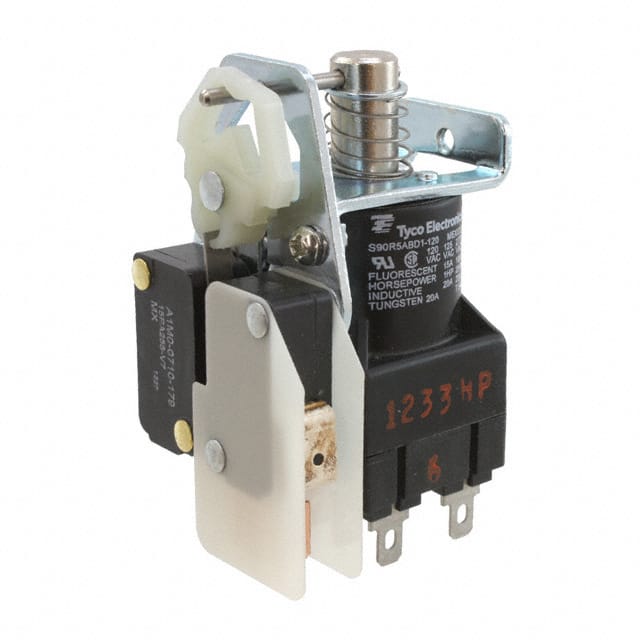

  • S90R5ABD1-120 Image
    Image may be representation.See specifications for product details.

Product Overview

Part Number S90R5ABD1-120
Manufacturer/Brand TE Connectivity Potter & Brumfield Relays
Product Description RELAY IMPULSE SPDT 20A 120V
Datasheets 1.S90R5ABD1-120.pdf 2.S90R5ABD1-120.pdf 3.S90R5ABD1-120.pdf
RoHs Status
Stock Condition Out Stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS

In stock: 0 pcs

Reference Price(In US Dollars)

Request Quote

Please complete all required fields with your contact information.
Click "SUBMIT REQUEST" we will contact you shortly by email.
Or Email us: mds@weikengsz.com

Please give us your target price if quantities greater than those displayed.

Inquiry Online

  • $ 0.0

Specifications

  • Part NumberS90R5ABD1-120
  • ManufacturerTE Connectivity Potter & Brumfield Relays
  • DescriptionRELAY IMPULSE SPDT 20A 120V
  • Category167
  • Part Status0 pcs Stock
  • Contact Rating (Current)20 A
  • Contact Material-
  • Contact FormSPDT (1 Form C)
  • Relay TypeImpulse
  • Coil InsulationClass B
  • Coil TypeLatching, Single Coil
  • Coil Resistance260 Ohms
  • Coil Current75 mA
  • Coil Voltage120VAC
  • SeriesS90R
  • categoriesRelays-->Power Relays, Over 2 Amps
  • Termination StyleQuick Connect - 0.250' (6.3mm)
  • Features-
  • Must Release Voltage-
  • Must Operate Voltage102 VAC
  • Operating Temperature-10°C ~ 60°C
  • Seal Rating-
  • Mounting TypeChassis Mount
  • Base Product NumberS90R5A
  • PackageBulk
  • Switching Voltage277VAC - Max
  • Product StatusObsolete
