SGTL5000XNLA3

NXP USA Inc.

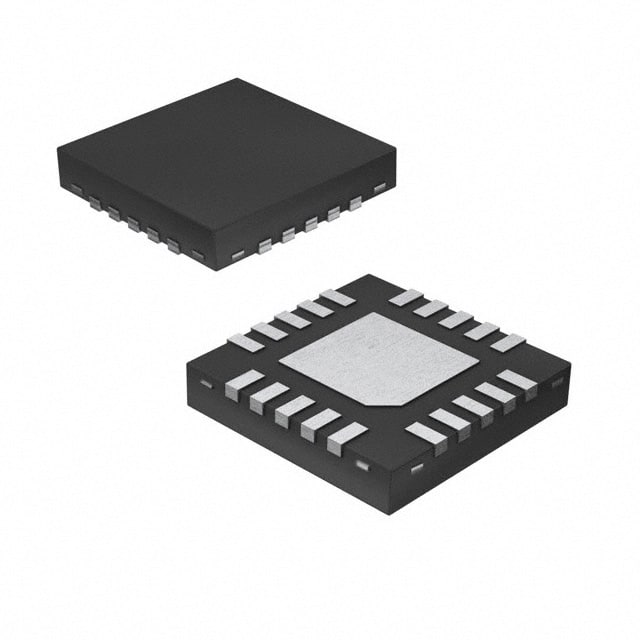

  • SGTL5000XNLA3 Image
    Image may be representation.See specifications for product details.

Product Overview

Part Number SGTL5000XNLA3
Manufacturer/Brand Freescale / NXP Semiconductors
Product Description IC AUDIO CODEC STEREO 20-QFN
Datasheets 1.SGTL5000XNLA3.pdf 2.SGTL5000XNLA3.pdf 3.SGTL5000XNLA3.pdf 4.SGTL5000XNLA3.pdf 5.SGTL5000XNLA3.pdf 6.SGTL5000XNLA3.pdf 7.SGTL5000XNLA3.pdf 8.SGTL5000XNLA3.pdf
RoHs Status
Stock Condition In Stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS

In stock: 16064 pcs

Reference Price(In US Dollars)
1
$3.019

Request Quote

Please complete all required fields with your contact information.
Click "SUBMIT REQUEST" we will contact you shortly by email.
Or Email us: mds@weikengsz.com

Please give us your target price if quantities greater than those displayed.

Inquiry Online

  • $ 0.0

Specifications

  • Part NumberSGTL5000XNLA3
  • ManufacturerFreescale / NXP Semiconductors
  • DescriptionIC AUDIO CODEC STEREO 20-QFN
  • Category80
  • Part Status16064 pcs Stock
  • Series-
  • TypeStereo Audio
  • categoriesIntegrated Circuits (ICs)-->Interface-->CODECS
  • Number of ADCs / DACs1 / 1
  • Voltage - Supply, Analog1.62V ~ 3.6V
  • Voltage - Supply, Digital1.1V ~ 2V, 1.62V ~ 3.6V
  • Data InterfaceI²C, Serial, SPI™
  • Operating Temperature-40°C ~ 85°C
  • Package / Case20-UFQFN Exposed Pad
  • Mounting TypeSurface Mount
  • Base Product NumberSGTL5000
  • PackageTray
  • Dynamic Range, ADCs / DACs (db) Typ-
  • Resolution (Bits)-
  • Supplier Device Package20-QFN-EP (3x3)
  • Product StatusActive
  • Sigma DeltaNo
  • S/N Ratio, ADCs / DACs (db) Typ90 / 100
