T77V1D10-12

TE Connectivity Potter & Brumfield Relays

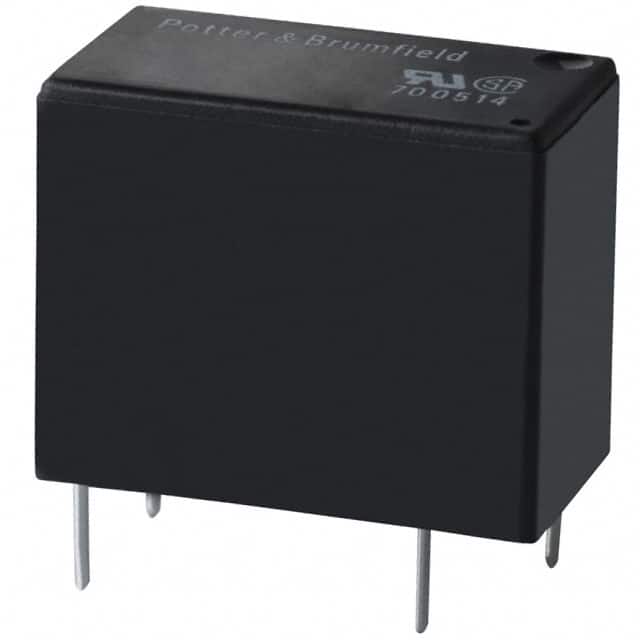

  • T77V1D10-12 Image
    Image may be representation.See specifications for product details.

Product Overview

Part Number T77V1D10-12
Manufacturer/Brand TE Connectivity Potter & Brumfield Relays
Product Description RELAY GEN PURPOSE SPST 10A 12V
Datasheets 1.T77V1D10-12.pdf 2.T77V1D10-12.pdf 3.T77V1D10-12.pdf 4.T77V1D10-12.pdf 5.T77V1D10-12.pdf 6.T77V1D10-12.pdf
RoHs Status
Stock Condition In Stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS

In stock: 21523 pcs

Reference Price(In US Dollars)
1
$1.849

Request Quote

Please complete all required fields with your contact information.
Click "SUBMIT REQUEST" we will contact you shortly by email.
Or Email us: mds@weikengsz.com

Please give us your target price if quantities greater than those displayed.

Inquiry Online

  • $ 0.0

Specifications

  • Part NumberT77V1D10-12
  • ManufacturerTE Connectivity Potter & Brumfield Relays
  • DescriptionRELAY GEN PURPOSE SPST 10A 12V
  • Category167
  • Part Status21523 pcs Stock
  • Contact Rating (Current)10 A
  • Contact MaterialSilver Cadmium Oxide (AgCdO)
  • Contact FormSPST-NO (1 Form A)
  • Relay TypeGeneral Purpose
  • Coil InsulationClass F
  • Coil TypeNon Latching
  • Coil Resistance320 Ohms
  • Coil Current37.5 mA
  • Coil Voltage12VDC
  • SeriesT77
  • categoriesRelays-->Power Relays, Over 2 Amps
  • Termination StylePC Pin
  • Features-
  • Operate Time10 ms
  • Must Release Voltage0.6 VDC
  • Must Operate Voltage9 VDC
  • Operating Temperature-30°C ~ 85°C
  • Seal RatingSealed - Flux Protection
  • Mounting TypeThrough Hole
  • Base Product NumberT77V1
  • Release Time4 ms
  • PackageBulk
  • Switching Voltage250VAC, 30VDC - Max
  • Product StatusActive
