T9GS5L14-110

TE Connectivity Potter & Brumfield Relays

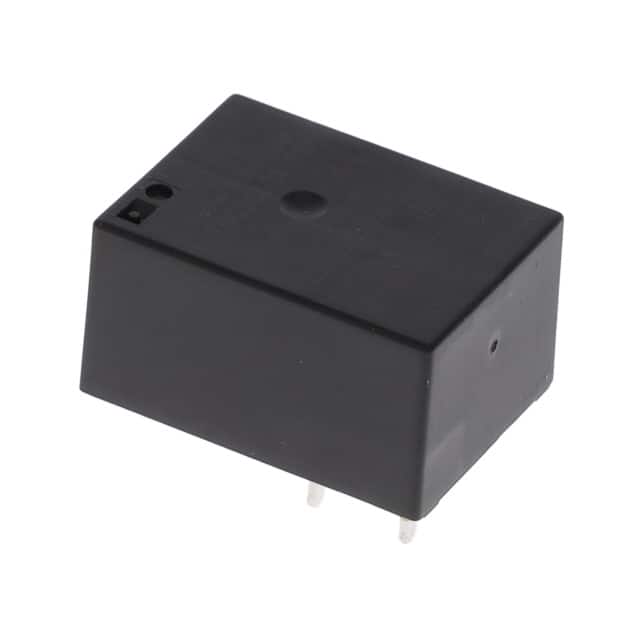

  • T9GS5L14-110 Image
    Image may be representation.See specifications for product details.

Product Overview

Part Number T9GS5L14-110
Manufacturer/Brand TE Connectivity Potter & Brumfield Relays
Product Description RELAY GEN PURPOSE SPDT 20A 110V
Datasheets T9GS5L14-110.pdf
RoHs Status
Stock Condition In Stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS

In stock: 125 pcs

Reference Price(In US Dollars)
1
$4.539

Request Quote

Please complete all required fields with your contact information.
Click "SUBMIT REQUEST" we will contact you shortly by email.
Or Email us: mds@weikengsz.com

Please give us your target price if quantities greater than those displayed.

Inquiry Online

  • $ 0.0

Specifications

  • Part NumberT9GS5L14-110
  • ManufacturerTE Connectivity Potter & Brumfield Relays
  • DescriptionRELAY GEN PURPOSE SPDT 20A 110V
  • Category167
  • Part Status125 pcs Stock
  • Contact Rating (Current)20 A
  • Contact MaterialSilver Tin Oxide (AgSnO)
  • Contact FormSPDT (1 Form C)
  • Relay TypeGeneral Purpose
  • Coil InsulationClass F
  • Coil TypeNon Latching
  • Coil Resistance13.4 kOhms
  • Coil Current8.2 mA
  • Coil Voltage110VDC
  • SeriesT9G
  • categoriesRelays-->Power Relays, Over 2 Amps
  • Termination StylePC Pin
  • Features-
  • Operate Time15 ms
  • Must Release Voltage11 VDC
  • Must Operate Voltage82.5 VDC
  • Operating Temperature-40°C ~ 105°C
  • Seal RatingSealed - Fully
  • Mounting TypeThrough Hole
  • Base Product NumberT9GS5
  • Release Time22 ms
  • PackageBulk
  • Switching Voltage480VAC - Max
  • Product StatusActive
