TPX205950MT-7010A1

TDK Corporation

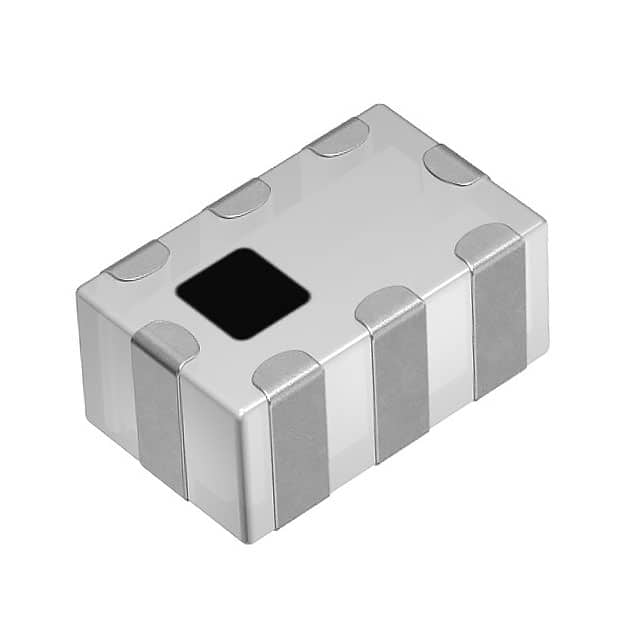

  • TPX205950MT-7010A1 Image
    Image may be representation.See specifications for product details.

Product Overview

Part Number TPX205950MT-7010A1
Manufacturer/Brand TDK Corporation
Product Description RF TRIPLEXER 2.45/5.425GHZ 0805
Datasheets 1.TPX205950MT-7010A1.pdf 2.TPX205950MT-7010A1.pdf
RoHs Status
Stock Condition In Stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS

In stock: 1545 pcs

Reference Price(In US Dollars)
1
$0.188

Request Quote

Please complete all required fields with your contact information.
Click "SUBMIT REQUEST" we will contact you shortly by email.
Or Email us: mds@weikengsz.com

Please give us your target price if quantities greater than those displayed.

Inquiry Online

  • $ 0.0

Specifications

  • Part NumberTPX205950MT-7010A1
  • ManufacturerTDK Corporation
  • DescriptionRF TRIPLEXER 2.45/5.425GHZ 0805
  • Category184
  • Part Status1545 pcs Stock
  • High Band Attenuation (min / max dB)5.00dB / 32.00dB
  • Frequency Bands (Low / High)2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz
  • SeriesTPX
  • TypeTriplexer
  • categoriesRF/IF and RFID-->RF Multiplexers
  • Package / Case0805 (2012 Metric), 6 PC Pad
  • Mounting TypeSurface Mount
  • Return Loss (Low Band / High Band)-
  • PackageTape & Reel (TR)
  • Low Band Attenuation (min / max dB)13.00dB / 23.00dB
  • Product StatusActive
