VS-40TPS12AL-M3

Vishay General Semiconductor - Diodes Division

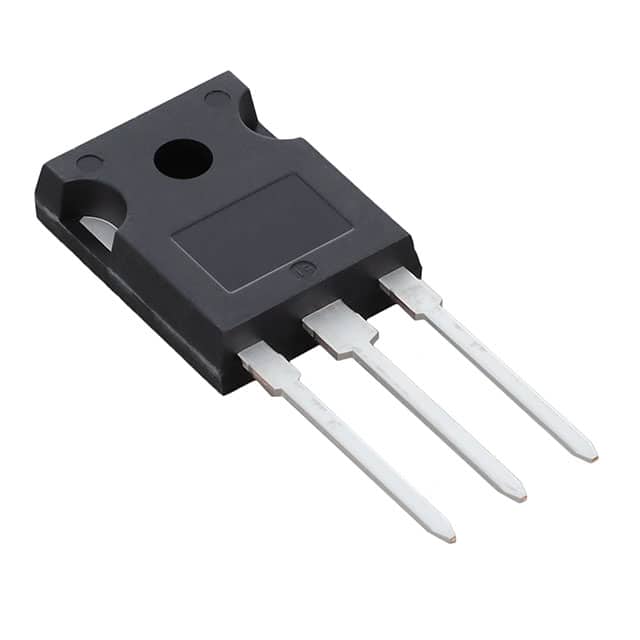

  • VS-40TPS12AL-M3 Image
    Image may be representation.See specifications for product details.

Product Overview

Part Number VS-40TPS12AL-M3
Manufacturer/Brand Vishay General Semiconductor - Diodes Division
Product Description SCR 1.2KV 55A TO247AD
Datasheets 1.VS-40TPS12AL-M3.pdf 2.VS-40TPS12AL-M3.pdf 3.VS-40TPS12AL-M3.pdf
RoHs Status
Stock Condition In Stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS

In stock: 615 pcs

Reference Price(In US Dollars)
1
$2.391

Request Quote

Please complete all required fields with your contact information.
Click "SUBMIT REQUEST" we will contact you shortly by email.
Or Email us: mds@weikengsz.com

Please give us your target price if quantities greater than those displayed.

Inquiry Online

  • $ 0.0

Specifications

  • Part NumberVS-40TPS12AL-M3
  • ManufacturerVishay General Semiconductor - Diodes Division
  • DescriptionSCR 1.2KV 55A TO247AD
  • Category36
  • Part Status615 pcs Stock
  • Series-
  • categoriesDiscrete Semiconductor Products-->Thyristors-->SCRs
  • Current - Non Rep. Surge 50, 60Hz (Itsm)600A @ 50Hz
  • Current - Hold (Ih) (Max)300 mA
  • Current - Gate Trigger (Igt) (Max)150 mA
  • Current - On State (It (RMS)) (Max)55 A
  • Current - On State (It (AV)) (Max)35 A
  • Current - Off State (Max)500 µA
  • Voltage - Gate Trigger (Vgt) (Max)1.7 V
  • Voltage - Off State1.2 kV
  • Voltage - On State (Vtm) (Max)1.85 V
  • Operating Temperature-40°C ~ 125°C (TJ)
  • Package / CaseTO-247-3
  • Mounting TypeThrough Hole
  • Base Product Number40TPS12
  • PackageTube
  • Supplier Device PackageTO-247AD
  • Product StatusActive
  • SCR TypeStandard Recovery
